About BARAM
- Offers advanced simulation capabilities for turbulence modeling, including Spalart-Allmaras, SST, standard, RNG, realizable, LES, and DES
- Supports comprehensive heat transfer analysis with natural/forced convection, conduction, and conjugate heat transfer
- Handles compressible flow with pressure-based solvers for incompressible to subsonic flow and density-based solvers for subsonic to supersonic flow
- Enables multiphase simulations using Volume of Fluid for multiple phases and cavitation models like Schnerr-Sauer, Kunz, and Merkle
- Provides species transport with buoyancy and diffusion, alongside user-defined scalar transport equations with or without flow calculation
- Includes non-Newtonian models such as Bird-Carreau, Cross power law, Hershel-Bulkley, and Power law
- Simulates rotating machinery with Multiple Reference Frame (MRF), Sliding Mesh, Actuator Disk, and Fan boundary condition options
- Models porous media using Darcy-Forchheimer, Power-law, and Porous jump boundary conditions
- Facilitates batch runs with user-defined parameters in csv and xlsx formats for condition setup
- Delivers detailed monitoring and reporting of residual values, forces, coefficients, and variables like age, y+, Q, vorticity, heat flux, heat transfer coefficient, shear stress, total pressure, and Mach number
- Supports multiple mesh types including OpenFOAM PolyMesh, Fluent (.msh/cas), Gmsh (.msh), I-deas Universal (.unv), and StarCCM+ (.ccm)
- Imports STL files with automatic detection of closed surfaces, surface splitting by feature angle, and support for simple native geometries (Hex, Sphere, Cylinder) and non-watertight surfaces
- Generates meshes for external and internal flows with cell zones, conformal/non-conformal interfaces, multi-region meshing for OpenFOAM, and refinement based on surfaces, edges, volumes, gaps, and curvature

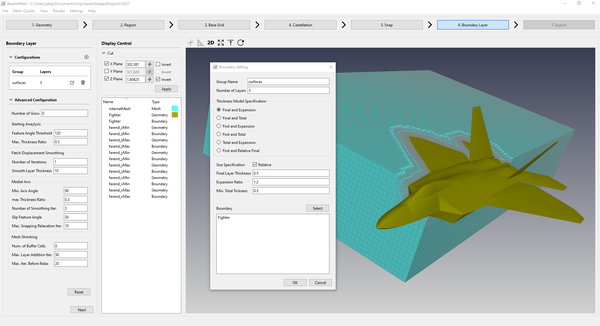

- Builds boundary layers and scales efficiently with parallel meshing, with the ability to export 3D meshes as 2D or axi-symmetric
- Allows mesh manipulation through scaling, translation, and rotation
Technical Specifications
Platforms
Windows, macOS, Linux
Latest Version
v25.1.0
License Type
Free
Pricing
Free
Free
Alternatives
User Reviews
No reviews yet. Be the first to review BARAM!
