About CADProps
Overview
CADProps helps engineers, designers and manufacturers open CAD files, inspect geometry and gather model properties directly in a web browser, without installing desktop software or creating an account.
Workflow

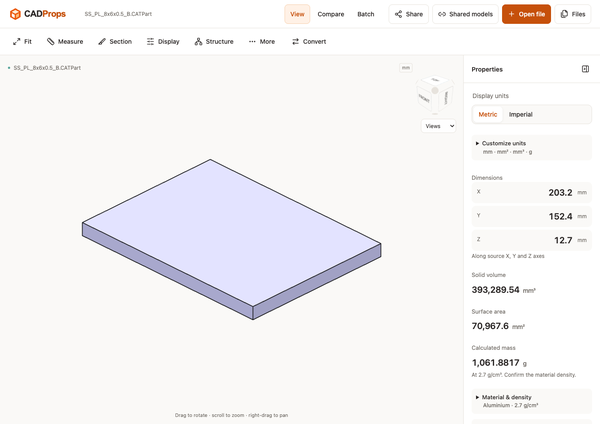

Upload a supported model, inspect it in 3D, check dimensions and properties, and export the results. Supported formats include STEP/STP, IGES and common mesh formats such as STL, OBJ, 3MF and GLB/GLTF. Capabilities vary by format.
Key capabilities
- Interactive 3D viewing and assembly inspection
- Dimensions, surface area and valid solid volume
- Mass estimates using a user-confirmed material density
- Model comparison and batch CSV property export
- Conversion between supported CAD and mesh formats
- Shareable model links
Measurement limits
CAD geometry and mesh results are distinguished: mesh measurements are approximate, and mass depends on the chosen density. Files are processed on the server in a guest-session workspace; see the website's supported-format and privacy pages for details.
Key Functions
- 3D CAD viewing and assembly inspection
- Dimensions, surface area and solid volume
- Density-based mass estimation
- Model comparison
- Batch CSV property export
- Supported CAD and mesh conversion
- Model sharing links
Technical Specifications
Platforms
Web browser (Windows, macOS, Linux)
Latest Version
Continuously updated web app
License Type
Free
Pricing
Free
Free
Free browser-based tools. No account or desktop installation required. File-format capabilities and upload limits apply.
