The Specifier

Hexagonal-grid based specification tool for structural-assemblies.

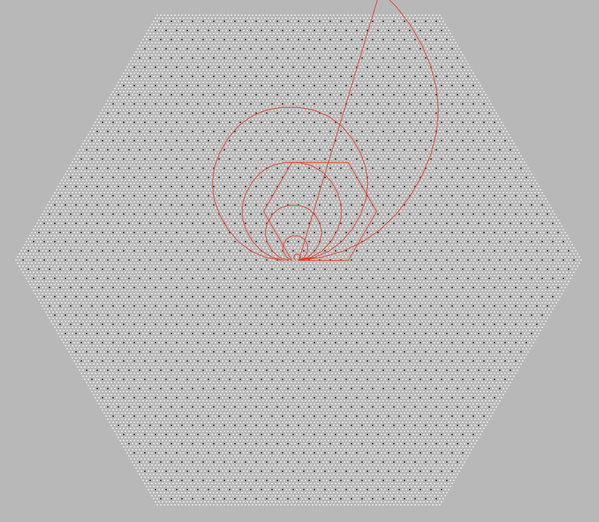

A demo of 2D curve specification using a hexagonal grid

About The Specifier

The Specifier uses a hexagonal grid to specify curves and surfaces.
This gives a designer efficient control over the specification process compared all existing (non grid-based) specification approaches.

In addition,

  • The Specifier uses InterUnit-UI, instead of WIMP, which makes it far simpler to use.
    InterUnit-UI is a new design paradigm that has far better ergonomics than WIMP.
    Most existing tools are not that simple to use (they all use WIMP).

  • The Specifier is being designed in sync with the design of a bicycle-trailer prototype.
    Hence it's design is use-centric and domain relevant.
    This also makes the design a lot simpler, since it starts with a narrow target.
    It provides the ability to specify not only a finished structural assembly, but also it construction process.

  • It includes the ability to do some ergonomic modeling of the user of the design.

  • Its computational complexity a lot lower than existing tools.
    It is designed with a minimal feature-set and resource usage approach,
    since it is an introductory tool and does not have to rely on 3D hardware acceleration.
    It will be very responsive on average PC hardware as a native app,
    and will not have any server side execution components (like cloud based tools).
    (All existing tools are either native, requiring workstation class processors,
    or cloud-based, implying browser and internet-bandwidth constraints).

The Specifier targets the design of micro-mobility class vehicle and is associated with a unit-production tool called the Unit-construction-hub, also produced by Khitchdee Design. It gives a small to medium scale micro-mobility vehicle producer a time-to-market advantage over existing design-production alternatives.

Key Functions

  • Structural and construction process specification of a structural assembly.
  • Visualisation of the (static or animated) specification.
  • Some ergonomic modelling of the user of the assembly.
  • Specialised for the specifcation of micro-mobility class vehicles.
  • Associated with low-cost unit-production technology.

Technical Specifications

Platforms

Windows, MacOS, Linux

Latest Version

Under development

License Type

Subscription

Pricing

One

Contact for Quote

TBD
