vcad
Open-source parametric CAD for makers with a browser app, Rust BRep kernel, CLI exports, and AI-agent modeling tools.
About vcad

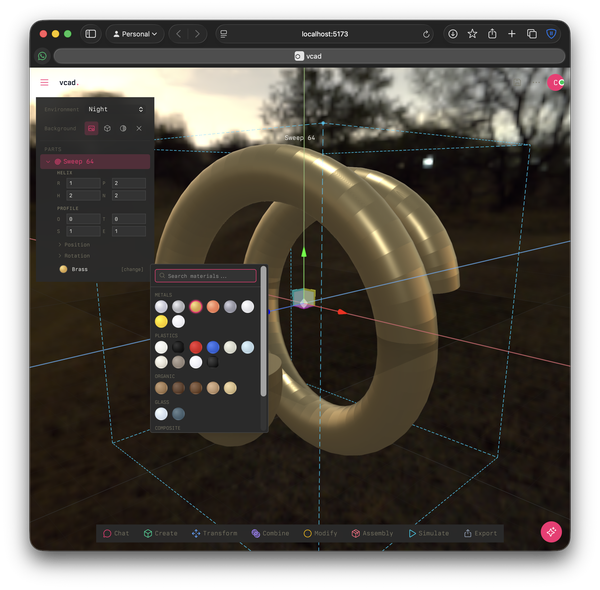

vcad is an open-source parametric CAD system for makers, developers, and technically minded design teams. It combines a browser CAD app with a Rust/WASM BRep kernel, desktop builds, command-line tooling, and libraries for scripted geometry workflows.
The project supports common solid-modeling operations including primitives, sketches, booleans, fillets, chamfers, shelling, sweep, loft, assemblies, joints, and direct BRep rendering. It can import STEP and export STL, GLB, STEP, DXF, and related formats for downstream fabrication, visualization, or interchange.
vcad also exposes MCP tools so AI agents can create, inspect, and export CAD documents. The hosted app runs in the browser, while the source, CLI, desktop builds, and Rust packages support local or self-managed use.
Key Functions
Parametric CAD modeling, sketching, booleans, assemblies, STEP import, STL/GLB/STEP/DXF export, CLI automation, MCP-based AI CAD creation
Technical Specifications
Platforms
Browser, Windows, macOS, Linux
Latest Version
v0.9.4
License Type
Free
Pricing
Open Source
Free
Free open-source project with hosted app, source code, CLI, Rust packages, and desktop release downloads available from official project channels.
